Name: MS Column Formwork
Brand: HUMAID STEEL WORKS
Price: 65.0 INR
Availability: InStock

Product Details:

Sleeve size Standard 48.3 mm
Pin High-grade alloy locking pins
Technique Welded/Prefabricated modular assembly
Prop Head U-Head or Flat type available
Weight Approx. 30-50 kg per panel depending on size
Color Yellow/Blue or as per requirement
Constitute Modular steel frames with plywood or steel sheeting
Share Your Product:

65.0 INR/Unit

Get a Price/Quote

Request To Call Back Send Inquiry

MS Column Formwork Price And Quantity

Price 65.0 INR/Unit
Minimum Order Quantity 10 Kilograms

MS Column Formwork Product Specifications

Diameter Customizable as per design, commonly 300 mm to 1200 mm
Constitute Modular steel frames with plywood or steel sheeting
Height Upto 3 meters per panel, extensions available
Width Variable, typically 300 mm - 1200 mm depending on column size
Color Yellow/Blue or as per requirement
Thickness Main panel 2.5 mm - 4.0 mm
Material Mild Steel (IS 2062)
Size Modular, custom sizes as per project
Technique Welded/Prefabricated modular assembly
Application Reinforced concrete column casting in civil and infrastructure projects
Sleeve size Standard 48.3 mm
Components Panels, Bracing, Tie Rods, Adjustable Props, Clamps, Waler, Base Plates, Angles
Length Standard panels 1.2 m, 2.4 m; custom lengths available
Pin High-grade alloy locking pins
Surface Treatment Powder Coated/Galvanized/Epoxy Painted
Prop Head U-Head or Flat type available
Weight Approx. 30-50 kg per panel depending on size
Features High strength, Reusable, Easy assembly & dismantling, Corrosion-resistant, Precise alignment, Rigid support system
Product Type MS Column Formwork
Platform Loading Capacity Up to 7.5 kN/m2

Fire Resistance Mild steel construction resistant to standard site fire hazards
Sheathing Material High-density plywood or steel sheet
Assembly Time 5-10 minutes per column segment
Compliance Standard IS 456, IS 801 standards
Transportability Knock-down design for easy transport and storage
Vertical Load Capacity Up to 80kN per column
Reusable Cycles More than 100 cycles with proper maintenance
Workability Temperature Range -10C to 50C
Panel Locking System Wedge clamp or Quick-release bolt system
Finish Quality Smooth concrete surface finish
Recommended Use Residential, Commercial, Industrial Construction
Environmental Resistance Moisture, rust, and impact resistant

MS Column Formwork Trade Information

Supply Ability 1000 Kilograms Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Get the unassailable advantage of our MS Column Formwork, now at a reduced price! This top-notch, sterling formwork system boasts a sizzling feature set, including a workability temperature range from -10C to 50C, high-density plywood or steel sheathing, and a robust modular steel frame. Engineered for up to 80kN vertical load per column and 100+ reusable cycles, our system guarantees smooth finishes and precise alignment. Quick to assemble (5-10 minutes/segment), corrosion-resistant, and compliant with IS 456, IS 801 - ideal for residential, commercial, and industrial sites in India.

Application Method & Usage

MS Column Formwork is applied using modular panels, bracing, and tie rods, assembled rapidly on-site for reinforced concrete column casting. Used by top-tier contractors, builders, and infrastructure developers, this system is suitable for both residential and commercial structures. Its reusable and robust design enables high efficiency, while the wedge clamp or quick-release bolt system ensures quick configuration and dismantling, making it ideal for large-scale, repetitive projects requiring precision and speed.

Packaging, Delivery & Shipping Details

Shipped goods are packed with utmost care and secured with durable wrapping to prevent transport damage. All MS Column Formwork components are boxed or crated securely, with protective materials to ensure safe arrival. Secure shipping is available from major Indian FOB ports. Typical delivery time is 10-15 days, depending on volume and destination. Transportation charges are calculated based on cargo size and location, guaranteeing a streamlined and cost-effective supply chain.

FAQ's of MS Column Formwork:

Q: How is MS Column Formwork assembled on-site?

A: Assembly involves connecting modular panels, bracing, and props with either a wedge clamp or quick-release bolt system. On-site crews can complete each column segment in 5-10 minutes, ensuring fast project progress.

Q: What are the main benefits of using this MS Column Formwork system?

A: This system offers high strength, precise alignment, over 100 reusable cycles, resistance to moisture and fire, and compatibility with various column sizes. Its knock-down design also enables easy transport and storage.

Q: When should I opt for customizable sizes in MS Column Formwork?

A: Customizable sizes are ideal when your project requires non-standard column diameters or lengths, ensuring a perfect fit for unique architectural or structural specifications.

Q: Where can the MS Column Formwork system be used most effectively?

A: It is recommended for residential, commercial, and industrial civil and infrastructure projects, especially where reinforced concrete columns of varying dimensions are required.

Q: What process ensures the durability of the formwork panels?

A: Durability is achieved through quality materials such as mild steel and high-density plywood, supported by powder coating, galvanization, or epoxy painting to prevent rust and wear.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Shuttering Plate' category

Cuplock Scaffolding Price : 65.0 INR/Kilograms Minimum Order Quantity : 10 Product Type : Other, Cuplock Scaffolding System Length : 1.5 m 3 m (various sizes available) Application : Other, Construction Sites, Building Facade, Maintenance, Industrial Projects Thickness : 2.5 mm 4 mm (varies as per design) Platform Loading Capacity : Up to 200 kg/m2 (varies as per configuration) Features : Easy assembly and dismantling, High durability, Stable Structure, Reusable Weight : Standard Vertical: approx. 1014 kg; Ledger: approx. 59 kg Prop Head : Other, Fixed, Adjustable optional Surface Treatment : Other, Painted/Hot Dip Galvanized Components : Other, Verticals, Horizontals, Base Plates, Ledger, Standards, Diagonal Braces Technique : Other, Hot Rolled Size : Standards: 1 m, 2 m, 2.5 m, 3 m; Ledgers: 1 m, 1.2 m, 1.5 m, 2 m Material : Other , Mild Steel/Carbon Steel Width : 1200 mm (standard) Color : Blue (custom colors available) Constitute : other, Steel Tubes with Welded Cups and Bottom Base Plates Pin : Other, Integral Spigot Pin provided for vertical connection

Send Inquiry

Galvanized Centering Plates Price : 68.0 INR/Kilograms Minimum Order Quantity : 10 Product Type : Other, Centering Plate (Shuttering Plate) Length : 900 mm (Standard), Customizable Application : Other, Construction, Slab Centering, Shuttering Thickness : 23 mm (Typically) Platform Loading Capacity : 1.52.5 Tons Features : Corrosion resistant, Reusable, High strength Weight : 1418 KG per plate (Standard Size) Prop Head : Other, Not Included Surface Treatment : Other, Galvanized Components : Other, Galvanized Centering Plate Technique : Other, Hot Dip Galvanizing Size : 600 mm x 900 mm, other sizes available Material : Other , Mild Steel Width : 600 mm (Standard), Customizable Color : Silver (Galvanized Finish) Constitute : other, Mild Steel Sheet Pin : Other, No integrated pin

Send Inquiry

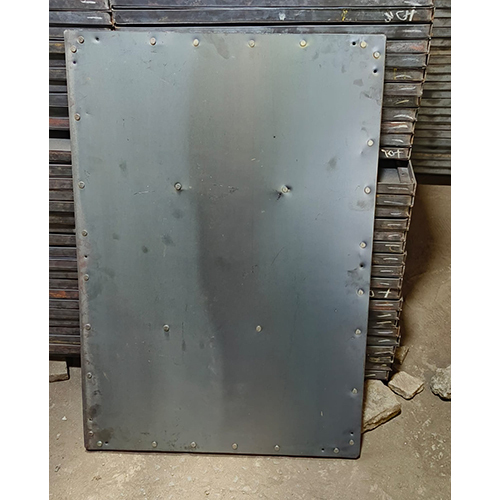

HR Centering Plate Price : 65.0 INR/Unit Minimum Order Quantity : 10 Product Type : Other, Centering Plate Length : 900 mm (approx) Application : Other, Construction Formwork, Slab Centering, Shuttering Systems Thickness : 2 mm 3 mm (standard) Platform Loading Capacity : Designed for heavy duty centering/shuttering support Features : Reusable, Heavy Load Capacity, Durable, Smooth Surface Finish Weight : Approx. 1520 kg depending on thickness Prop Head : Other, Not Included Surface Treatment : Other, Painted/Polished/AntiRust Coating Components : Other, HR Centering Plate Technique : Other, Hot Rolled Size : 600 mm x 900 mm (Standard) Material : Other , Mild Steel (MS) Width : 600 mm (approx) Color : Grey/Metallic Constitute : other, Steel Sheet
